SIEM/Log Management [SIEM/Log Management] Wazuh tích hợp Opensearch + Vector thu thập log Sophos Firewall

1. Cài Sophos Firewall thông qua ovf
Link tải: https://www.sophos.com/en-us/support/downloads/firewall-installers

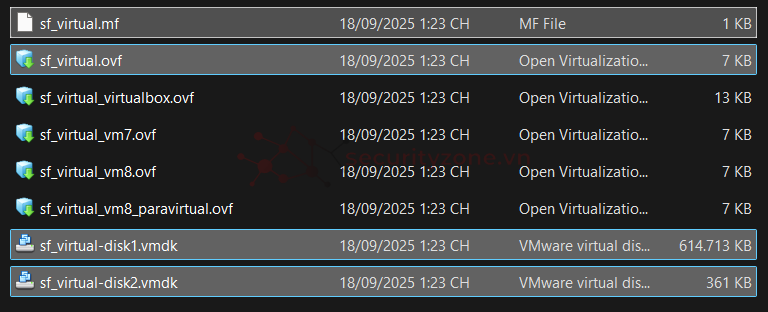

Sử dụng 4 file như trên hình:



Chọn Deploy OVF Templates:



Upload 4 file vào:



Tiếp theo cứ chọn mặc định
Khi cài xong lần đầu đăng nhập với password mặc định là: admin

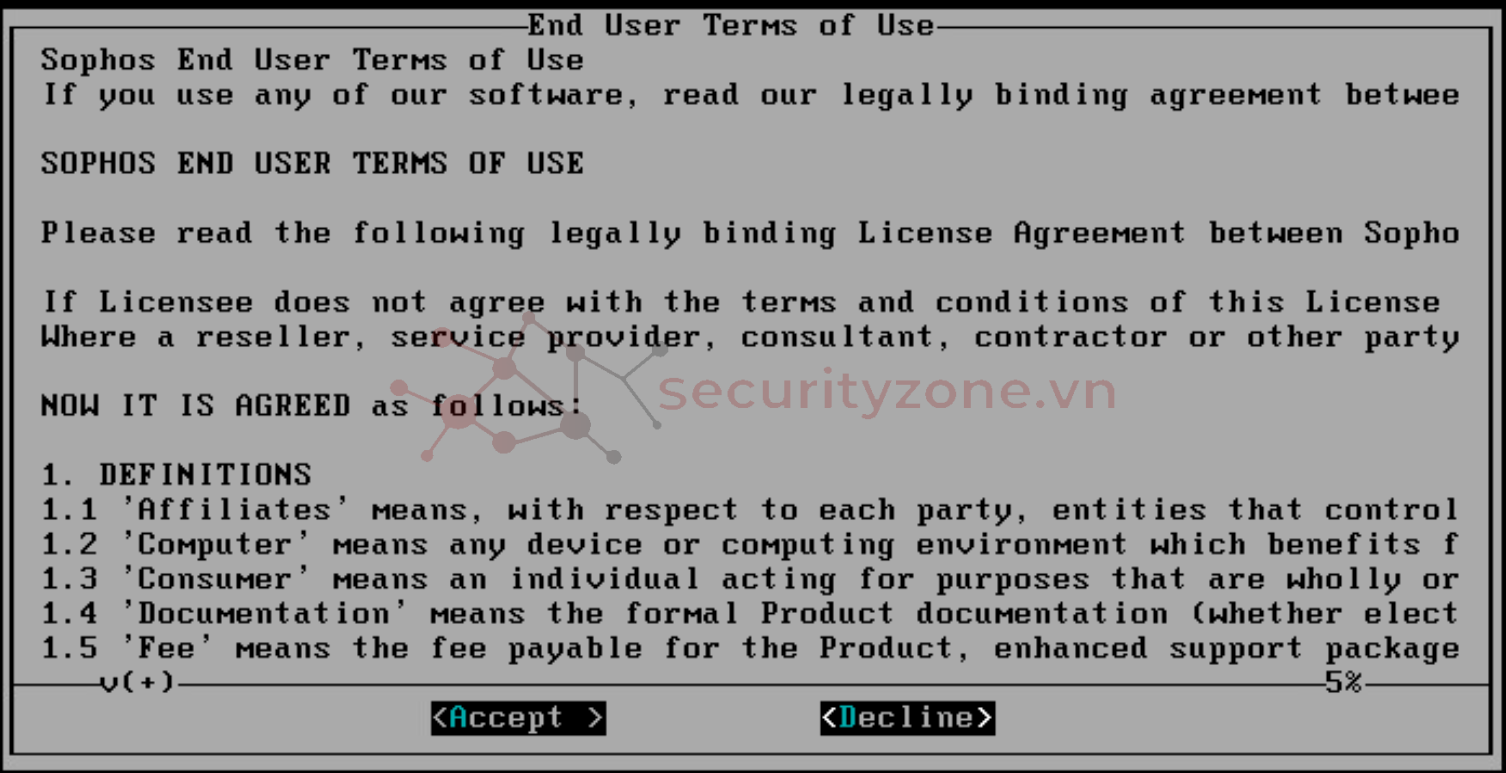

Ấn “a” để tiếp tục

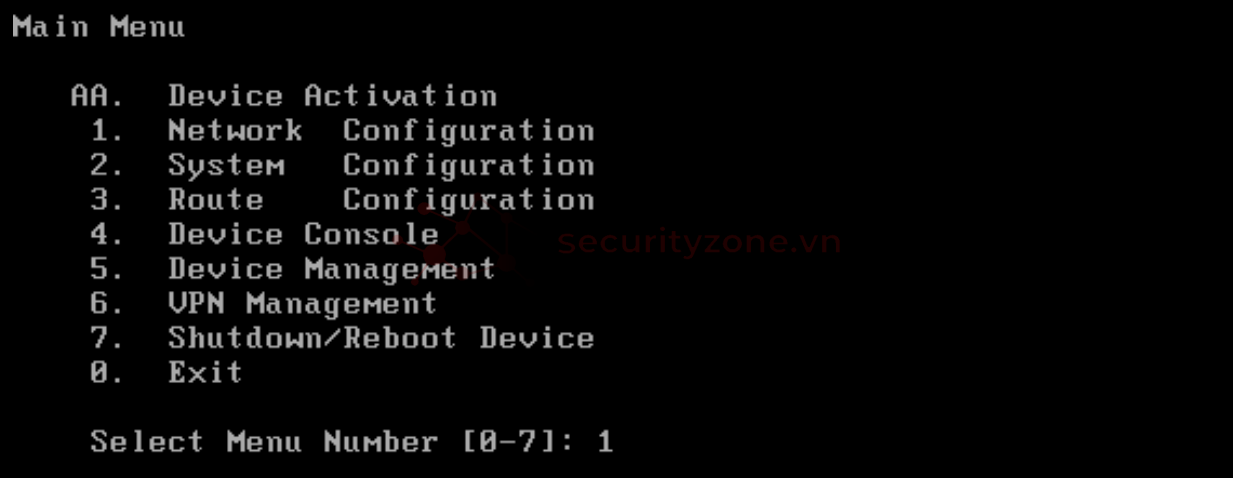

Chọn 1 để cấu hình lại địa chỉ IP LAN để cấu hình thông qua web:

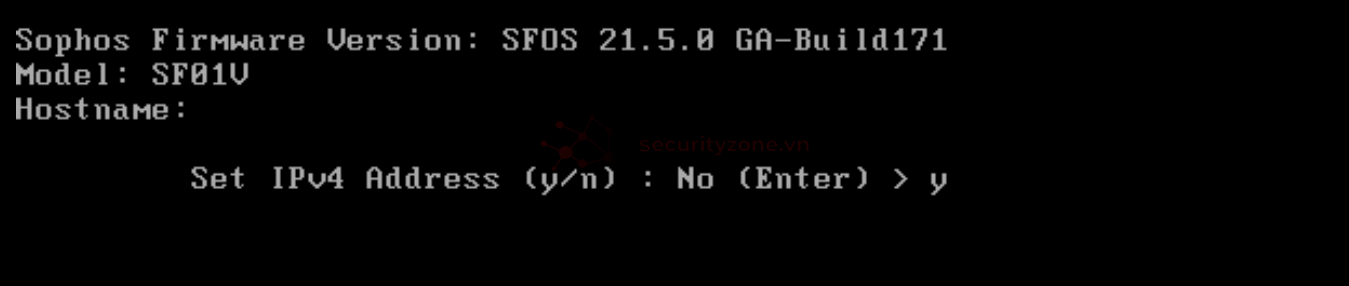

Nhập “y” để set địa chỉ IPv4 cho port LAN:

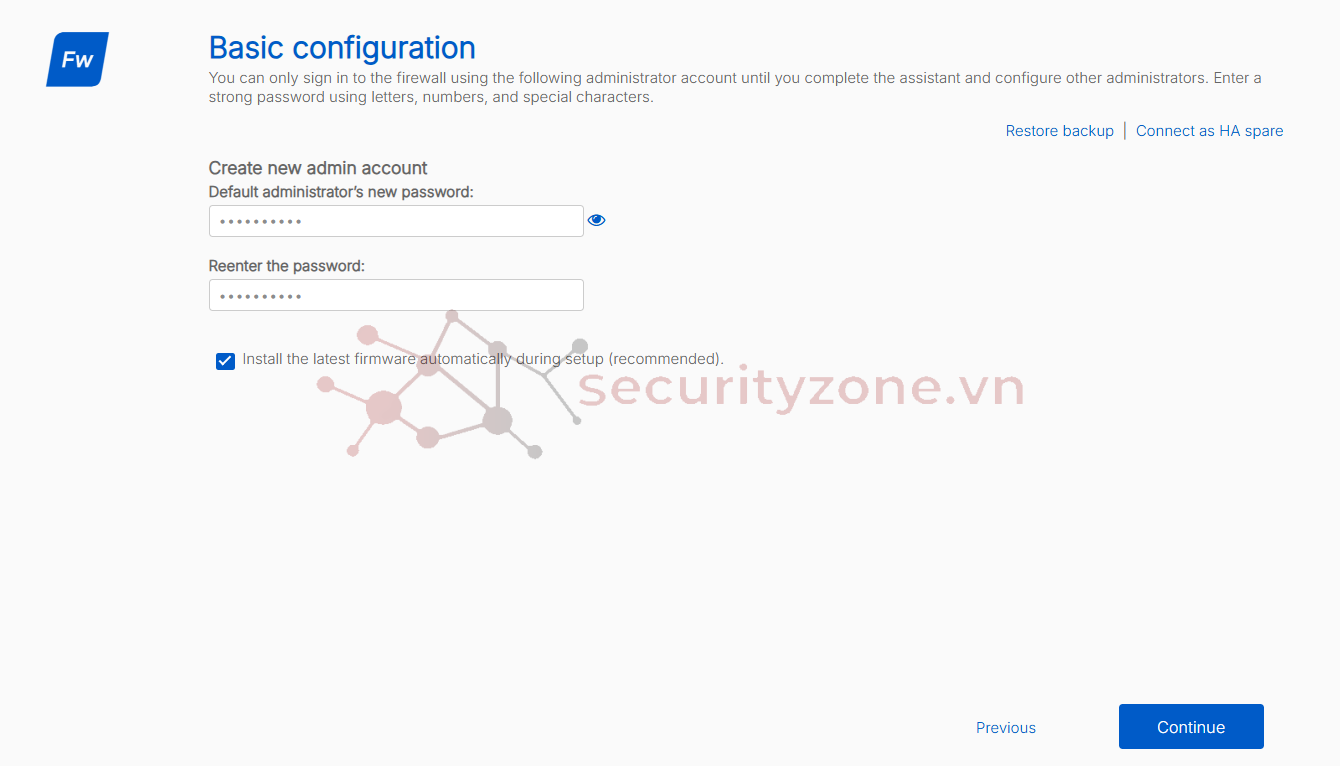

Đặt lại mật khẩu mới để đăng nhập:

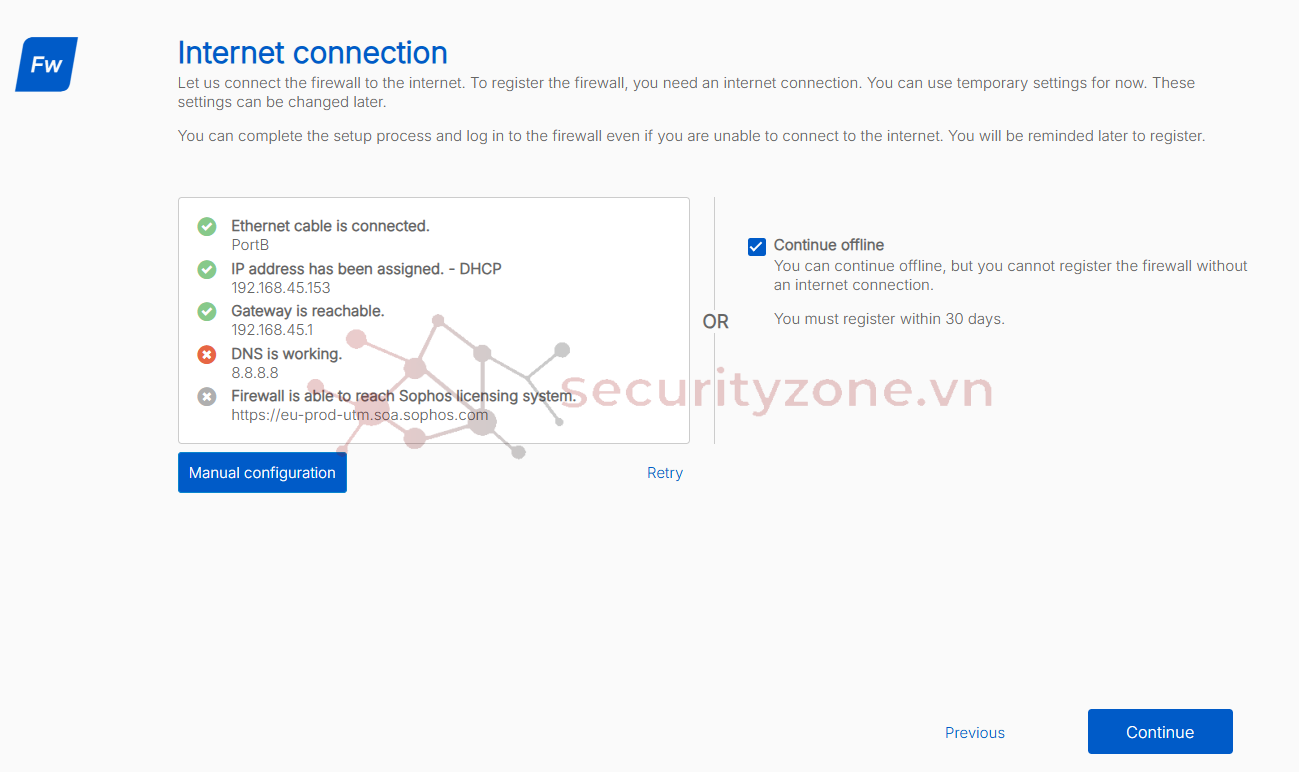

Chọn Continue offline:

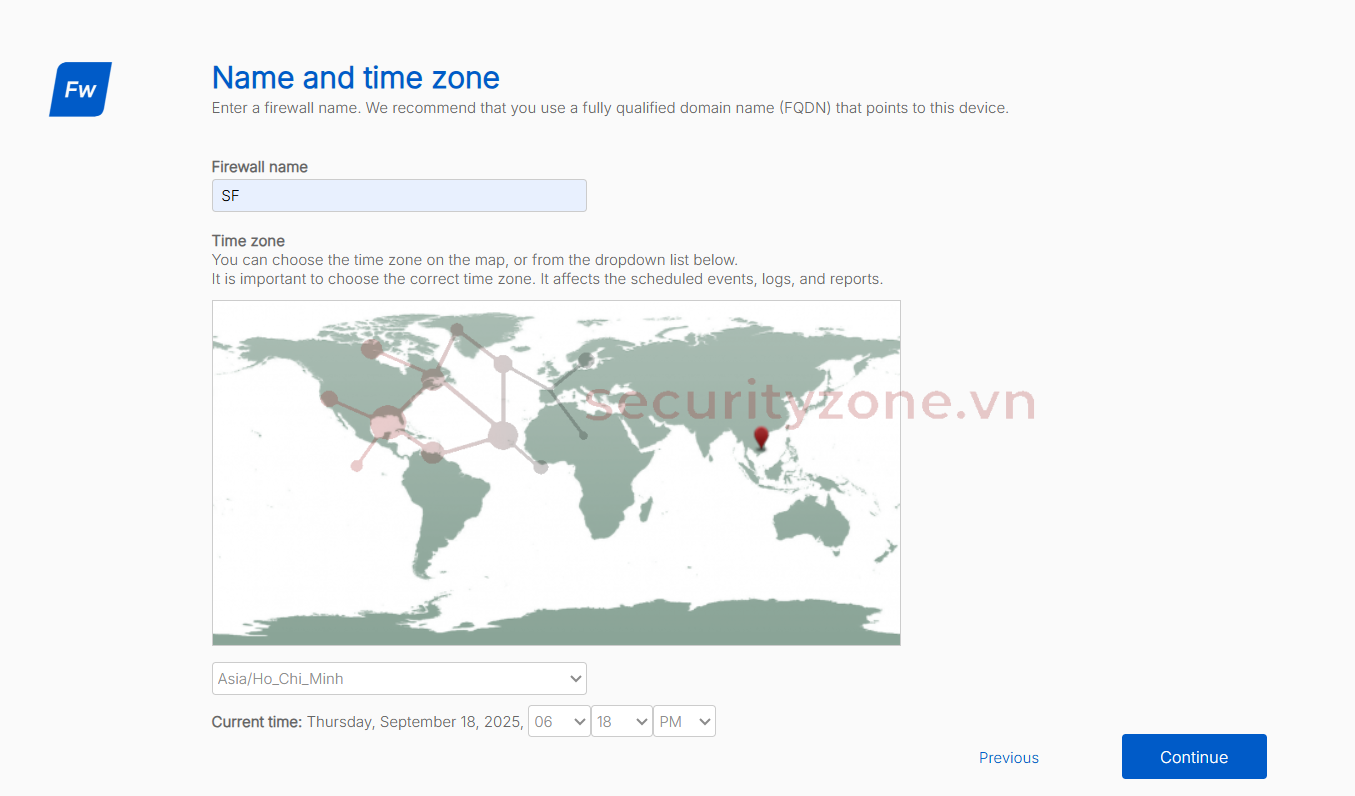

Set Name và Time Zone:



Tick “Opt in …”

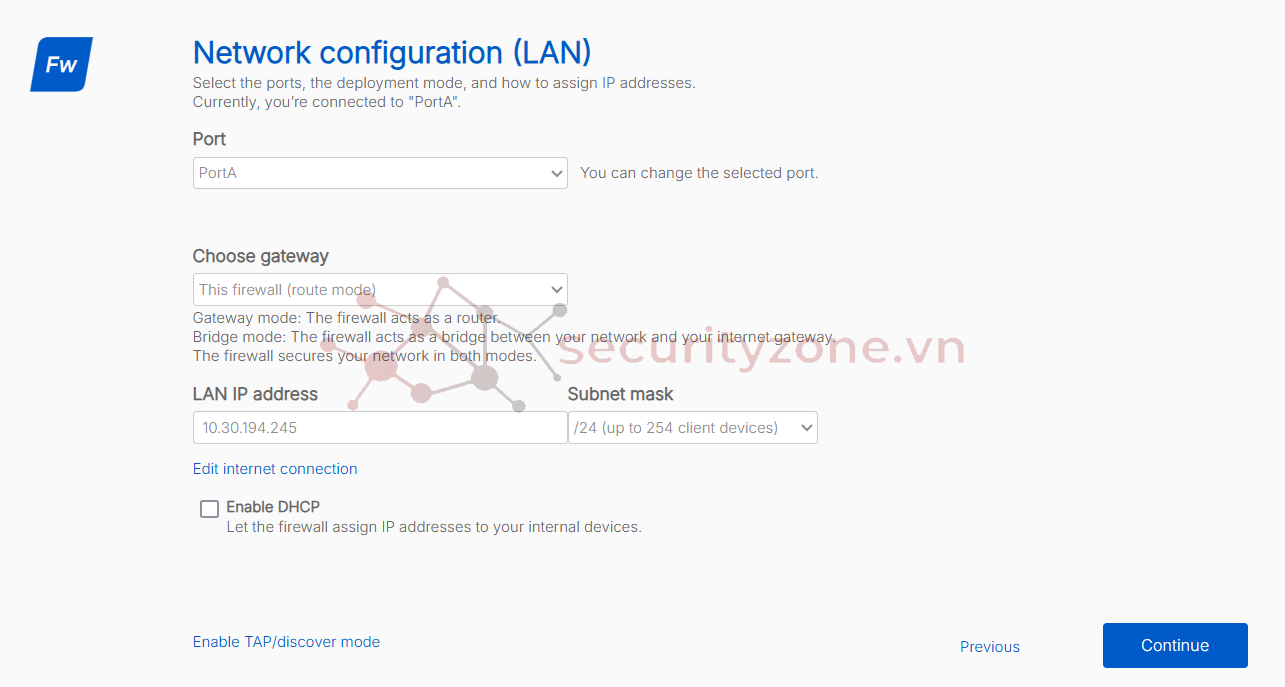

Tắt DHCP:







Đợi restart, sau đó đăng nhập với username và password đã đặt lại:

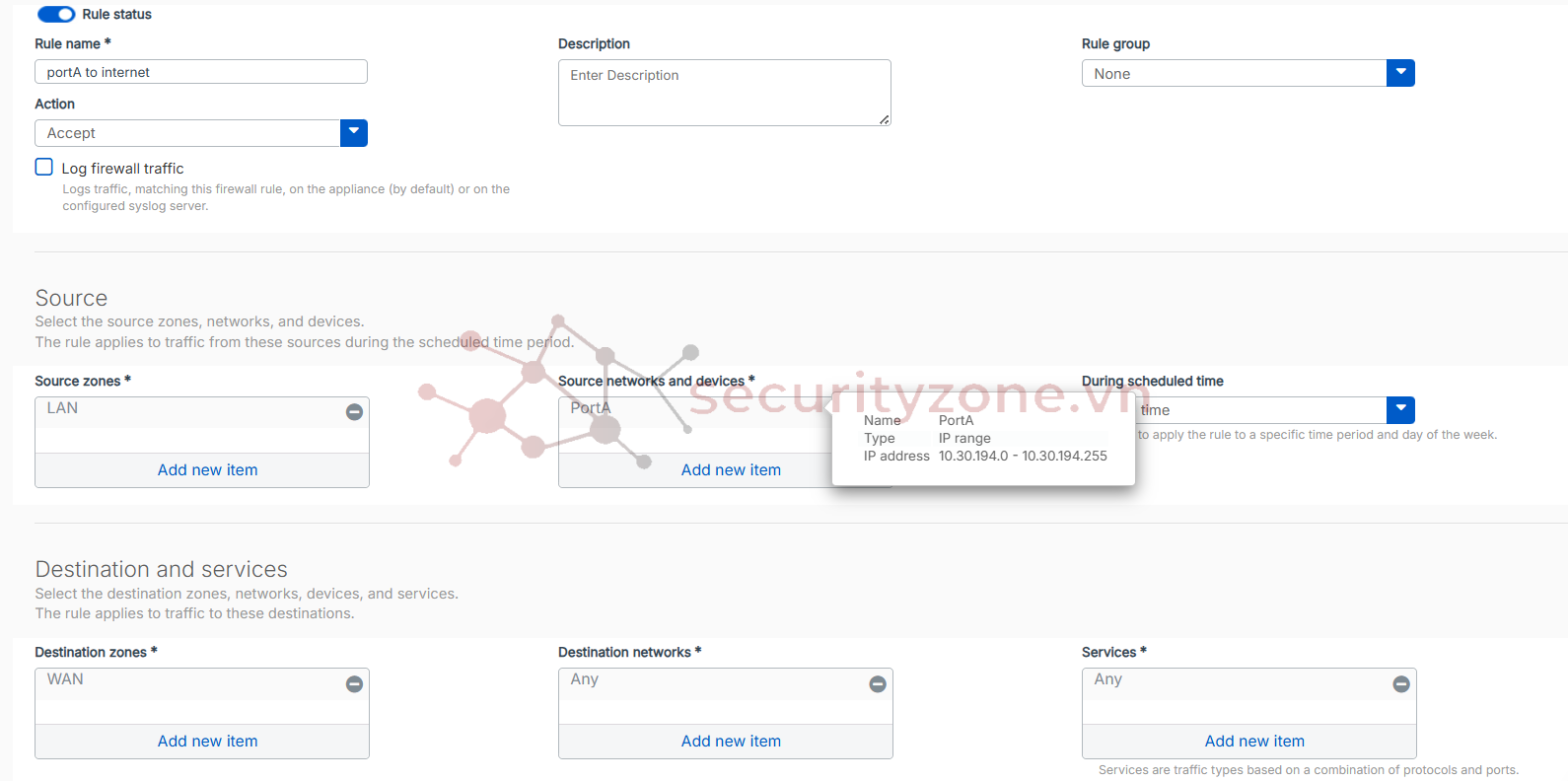

Tiến hành tạo rule để LAN có thể ra ngoài Internet: Rules and policies > Add firewall rule > New firewall rule

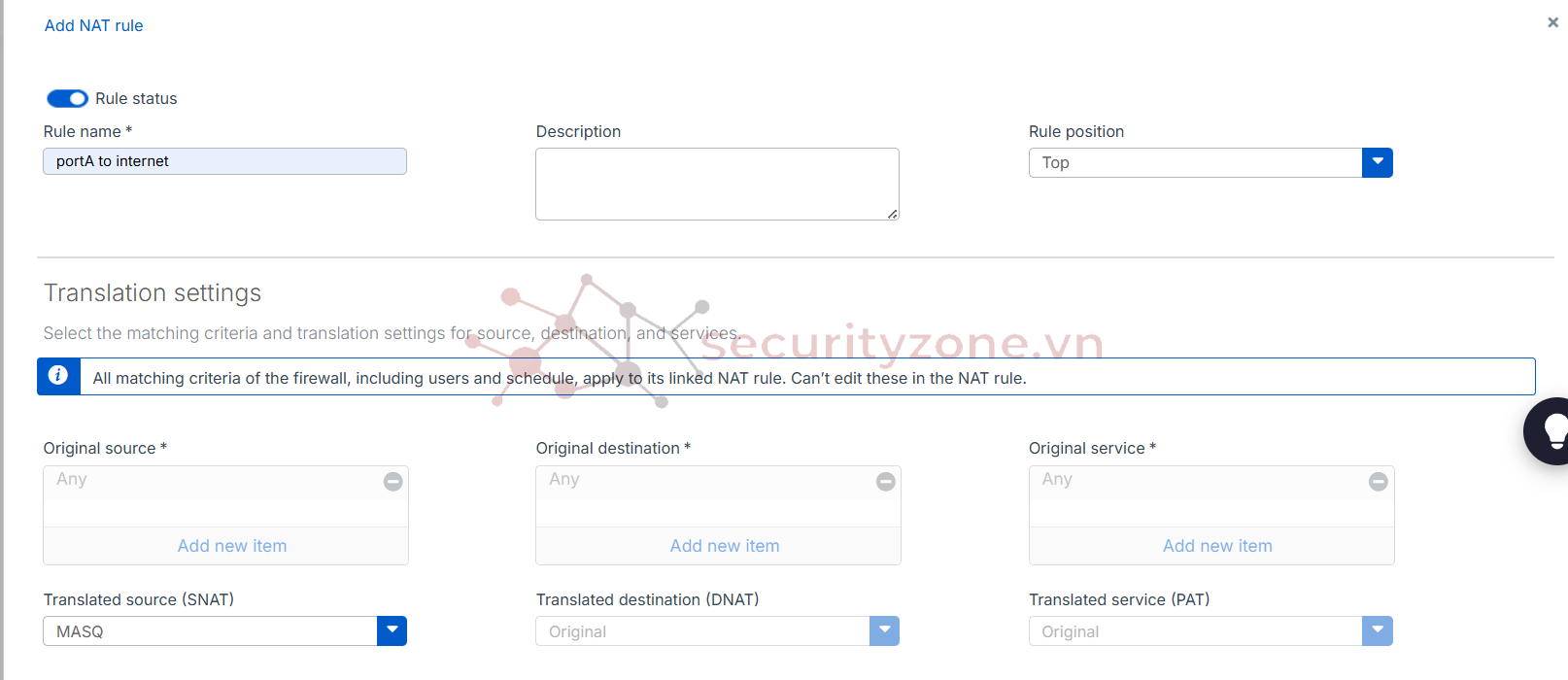

Chọn “Create linked NAT rule”: Chỉnh Translated source (SNAT) là MASQ



Sau đó ấn Save và rule được tạo thành công.
Trên máy Client đặt default gateway thành địa chỉ IP LAN của firewall:

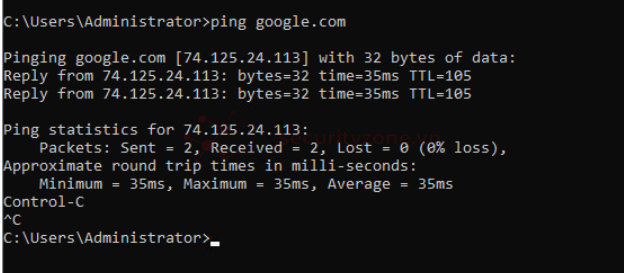

Test ping đến google.com:



Cấu hình cơ bản thành công.

2. Thu thập log Firewall

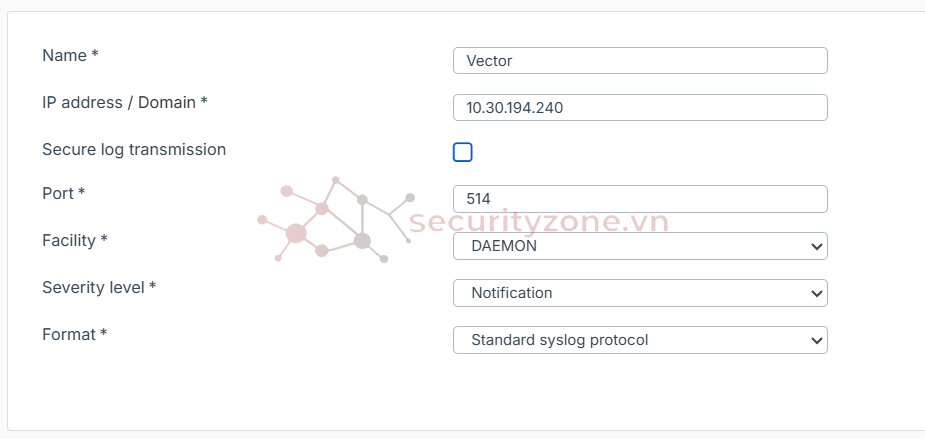

Vào System services > Log settings > Add



File vector.yaml:

data_dir: "/vector-data-dir"

api:
enabled: true
address: "0.0.0.0:8686"

sources:
wazuh_logs:
type: file
include:
- "/var/log/wazuh/archives.json"
ignore_older: 0

sophos_syslog:
type: socket
mode: udp
address: "0.0.0.0:514"

transforms:
parse_json_message:
type: remap
inputs: ["wazuh_logs"]
source: |
. = parse_json!(.message)

ensure_index_and_tags:
type: remap
inputs: ["parse_json_message"]
source: |
.index_name = "wazuh-manager"
.received_at = now()
if !exists(.source_type) { .source_type = "agent" }

parse_sophos_logs:
type: remap
inputs:
- sophos_syslog
source: |
.raw_message = to_string!(.message)

.index_name = "sophos_firewall"
.received_at = now()
.source_type = "sophos"

match, err = parse_regex(.raw_message, r'src_ip="?(?P<src_ip>\S+)"?')
if err == null { .src_ip = match.src_ip }

match2, err = parse_regex(.raw_message, r'dst_ip="?(?P<dst_ip>\S+)"?')
if err == null { .dst_ip = match2.dst_ip }

match3, err = parse_regex(.raw_message, r'protocol="?(?P<protocol>\S+)"?')
if err == null { .protocol = match3.protocol }

match4, err = parse_regex(.raw_message, r'fw_rule_name="(?P<rule_name>[^"]+)"')
if err == null { .fw_rule_name = match4.rule_name }

sinks:
# Sink cho cả Wazuh & Sophos
opensearch_sink:
type: elasticsearch
inputs: ["ensure_index_and_tags", "parse_sophos_logs"]
endpoints:
- "https://opensearch-node1:9200"
- "https://opensearch-node2:9200"
api_version: "v7"
bulk:
index: "{{ index_name }}"
request:
concurrency: 2
auth:
strategy: basic
user: admin
password: "Chinh123@"
tls:
verify_certificate: false
verify_hostname: false

console_out:
type: console
inputs: ["ensure_index_and_tags", "parse_sophos_logs"]
encoding:
codec: json

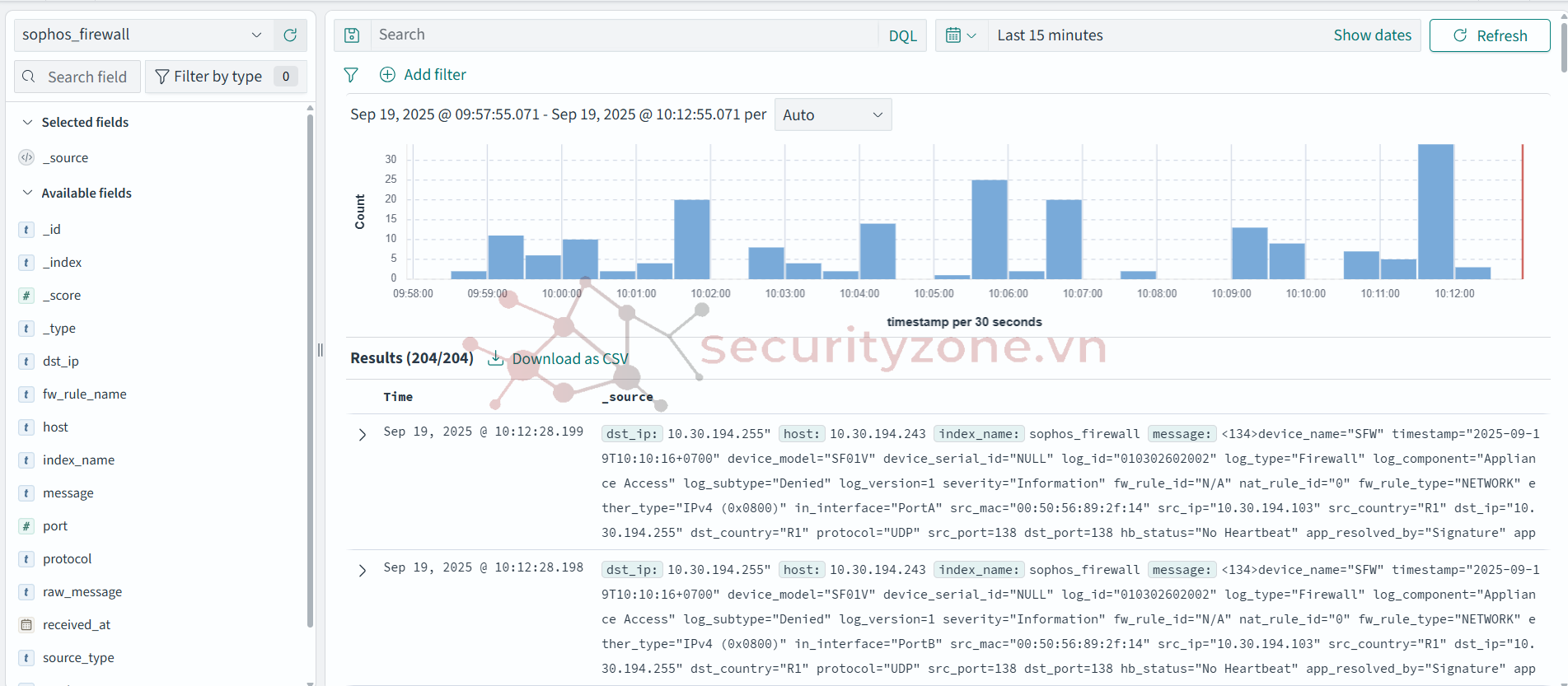

Sau đó restart lại container vector đã thấy log firewall:
